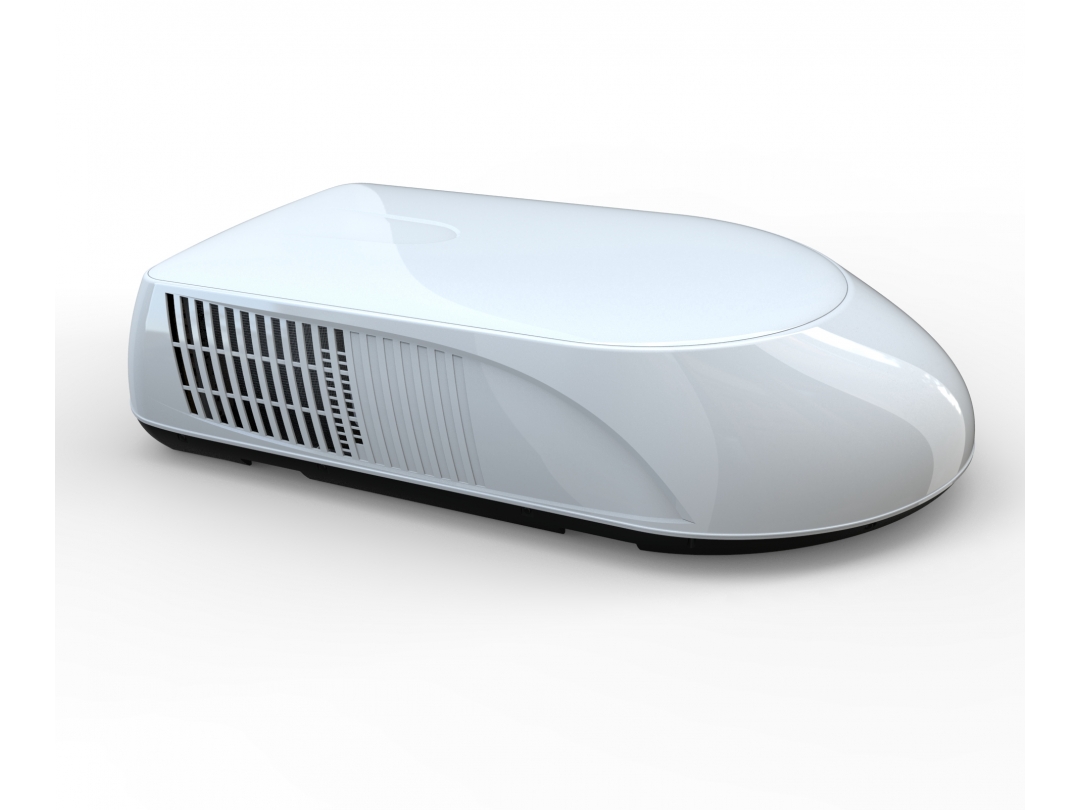

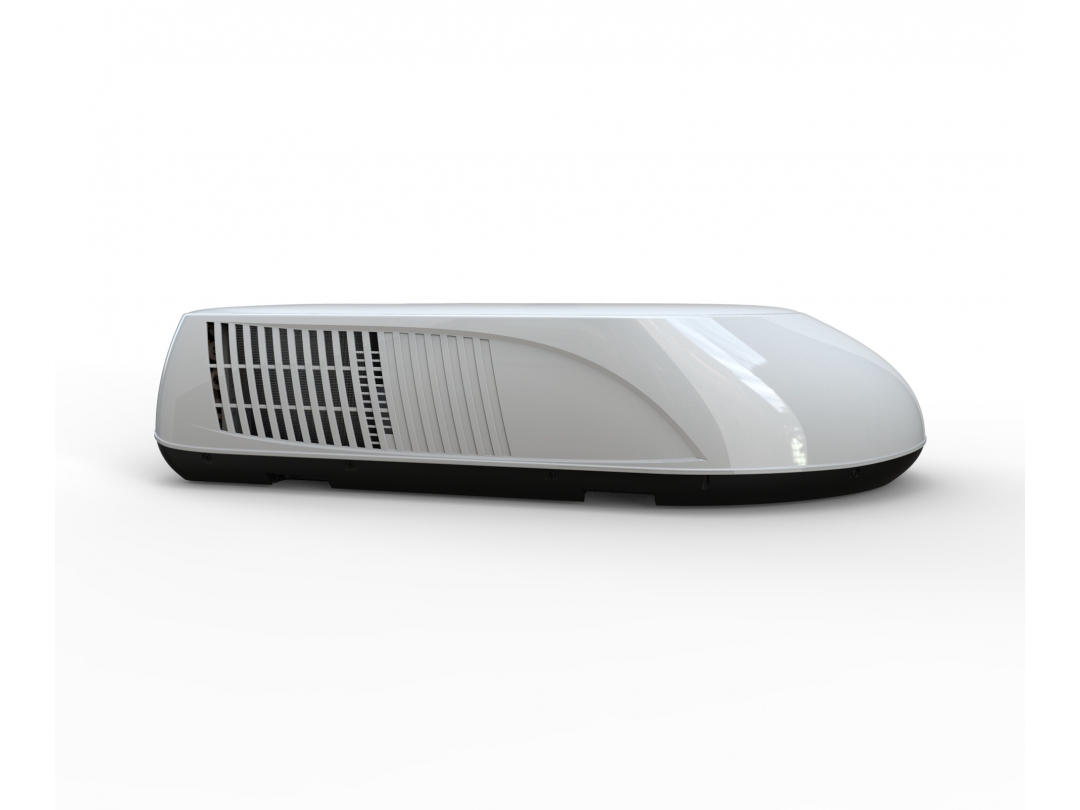

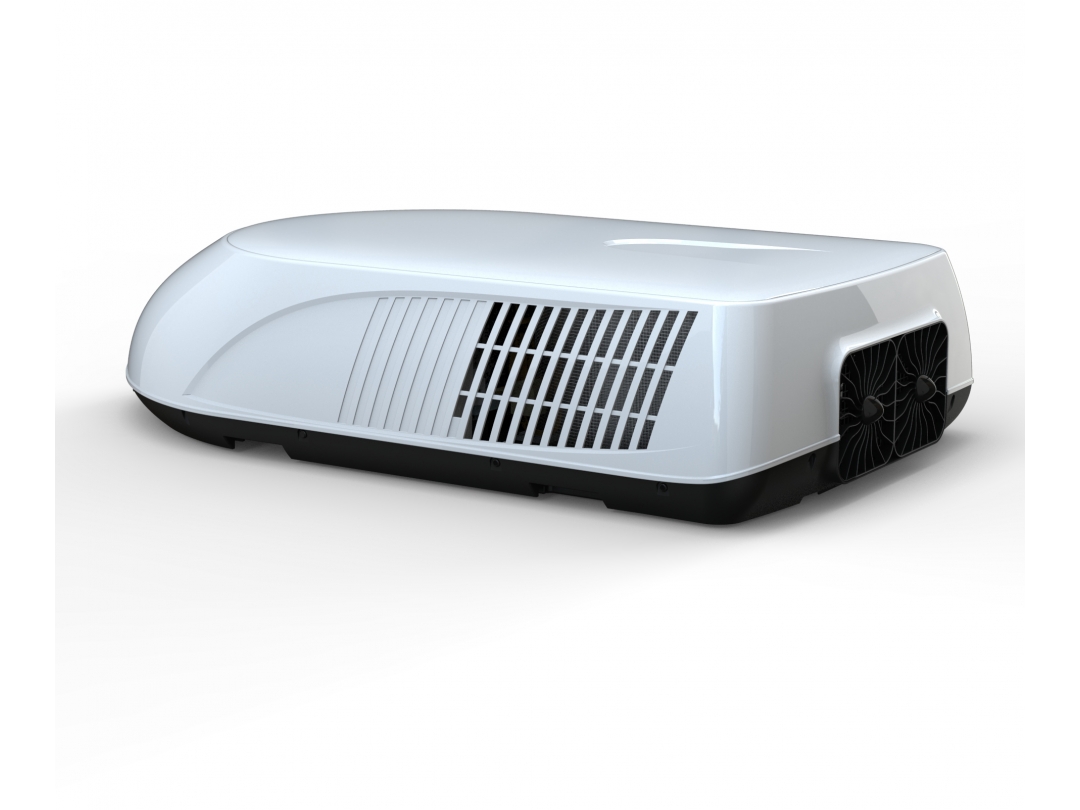

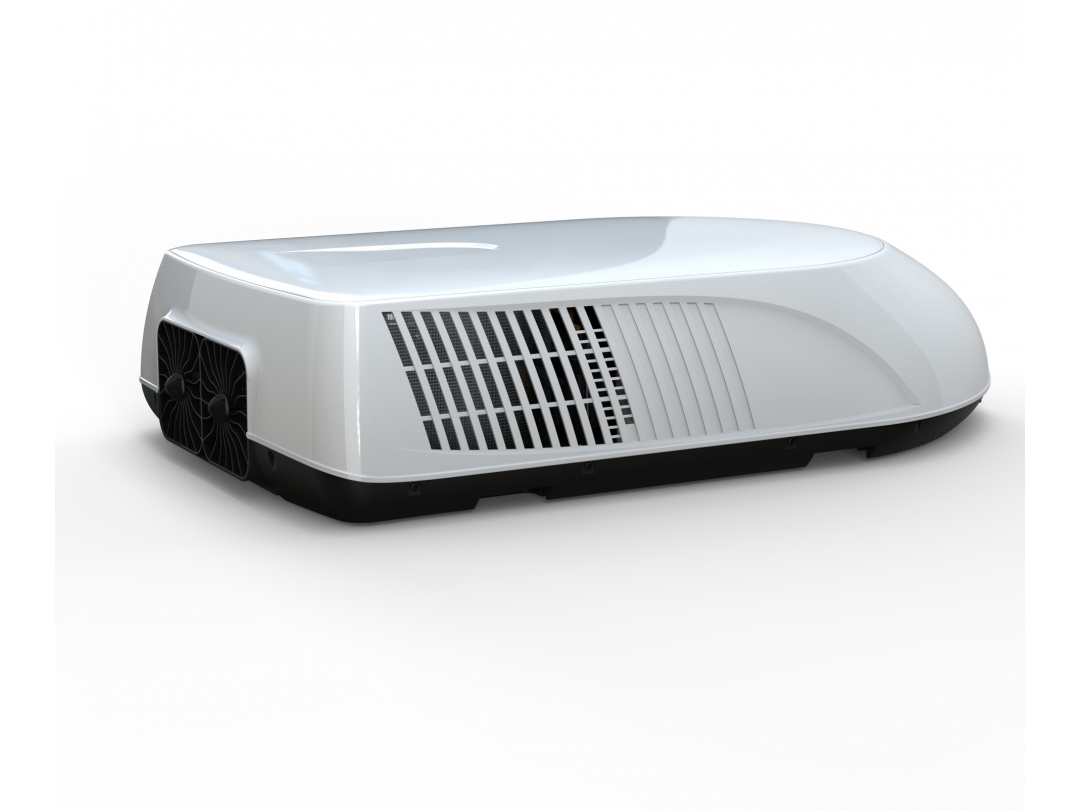

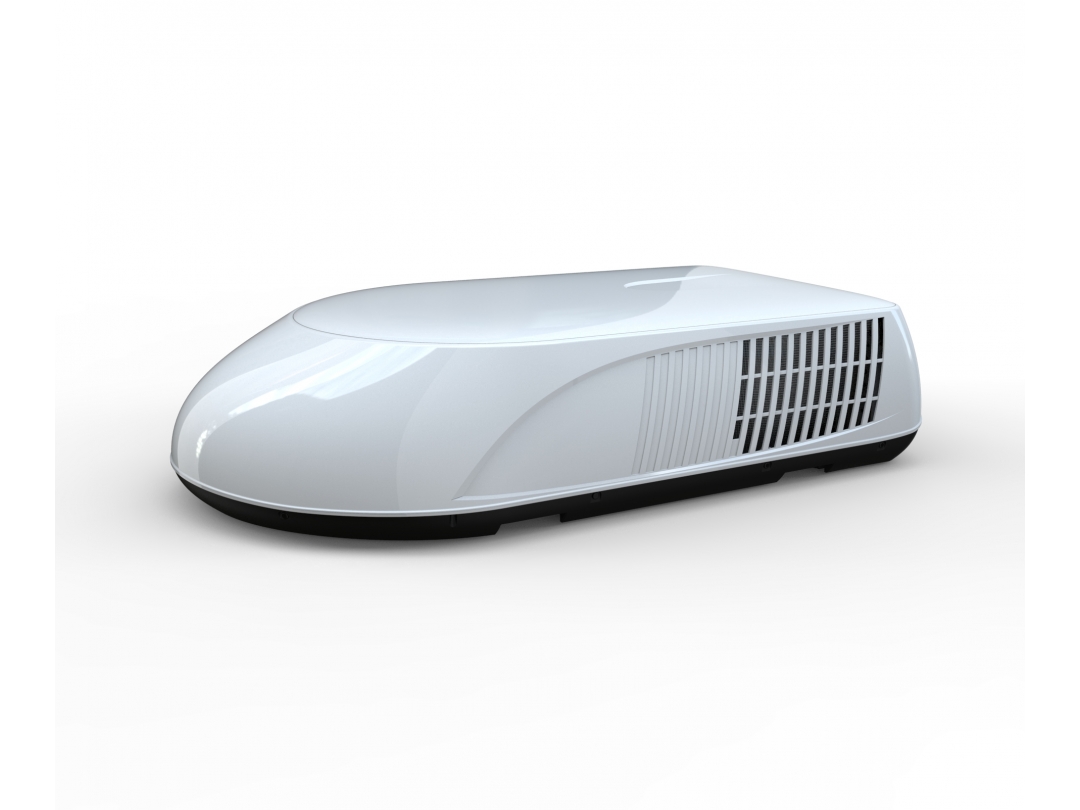

Caravan Air Conditioner

  • Air conditioner especially for motorhome & caravan & RV use.
  • Cooling/Fan/Heating/Dry 4 functions in 1 unit, designed for all weather, whether in scorching summer or freezing winter..
  • One touch, smart function – by choosing the AUTO mode, the unit will activate the most suitable operation mode automatically according to the ambient condition.
  • Compact and Lightweight design.
  • Low starting current, quiet to run.
  • 3 Blower speeds for maximum flexibility.
  • Sleep function for quiet operation.
  • Dual control – by indoor control panel or remote.
  • Air conditioner adjusts to roof thickness of vehicle for perfect air conditioner results.
  • Designed for stationary operation.

Specification
Rated voltage 230V/50Hz
Rated Cooling 3.0kW 3.4kW
Rated Heating 2.5kW 2.9kW
Power Consumption for Cooling 1250W/5.2A 1400W/6.2A
Power Consumption for Heating 1350W/6A 1680W/7.4A
Air volume (Max.) Indoor - 540 m3/h
Outdoor – 590 m3/h
Refrigerant R32
GWP (Global Warning Potential) 675
Noise (Max.) Sound pressure - 57 dB
Sound power – 65 dB
Test Condition Indoor - DB27, WB19
Outdoor - DB35, WB24
Working Temperature Cooling: 18~32
Heating: 7
~25
Control Type electronic
Timer 1~24 hrs
Fan Speed Hi / Med/ Low
Sleep function yes
Remote Control    yes
Roof opening (WxD) 360x360 mm
 (also applicable for 400x400mm roof-opening, by extra installation frame/fixture)
Product size (WxDxH) / N.W. Indoor unit – 550x550x40 mm / 3kg
Outdoor unit – 630x1092x248 mm / 35kg
Loading q'ty 198 sets/ 1x40'GP
231 sets/ 1x40'HQ
Approval CE, CB
115V, 60Hz product is available, please contact us for details.
