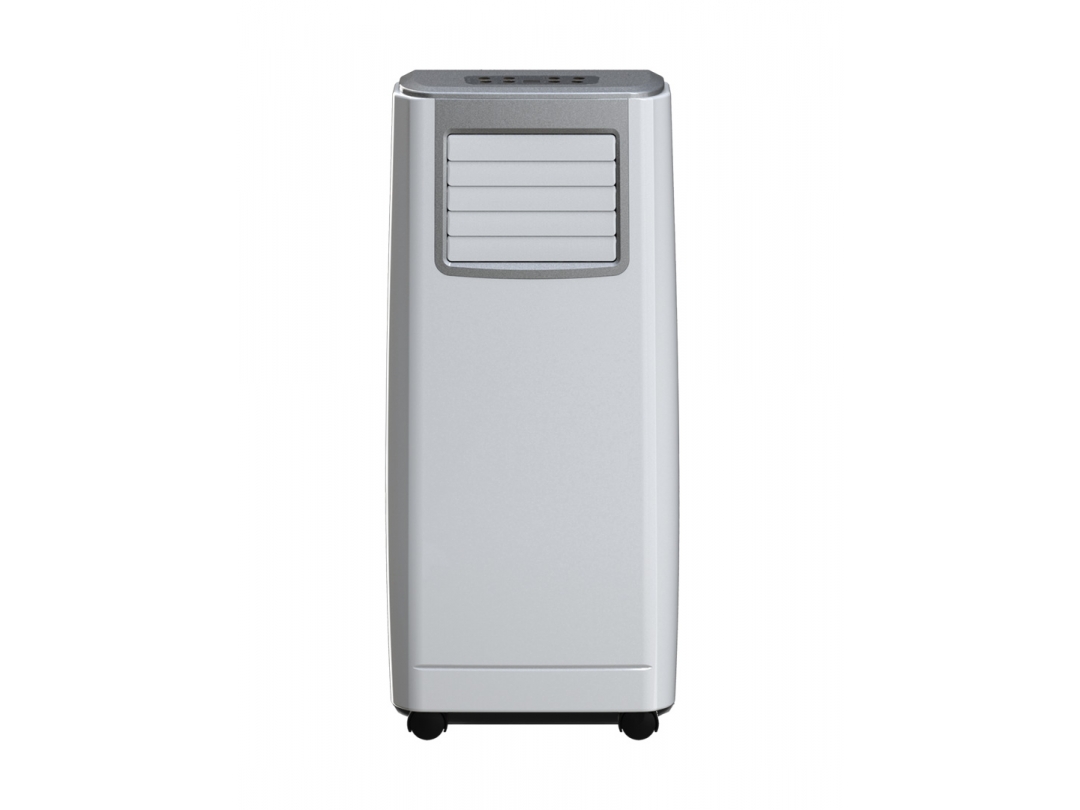

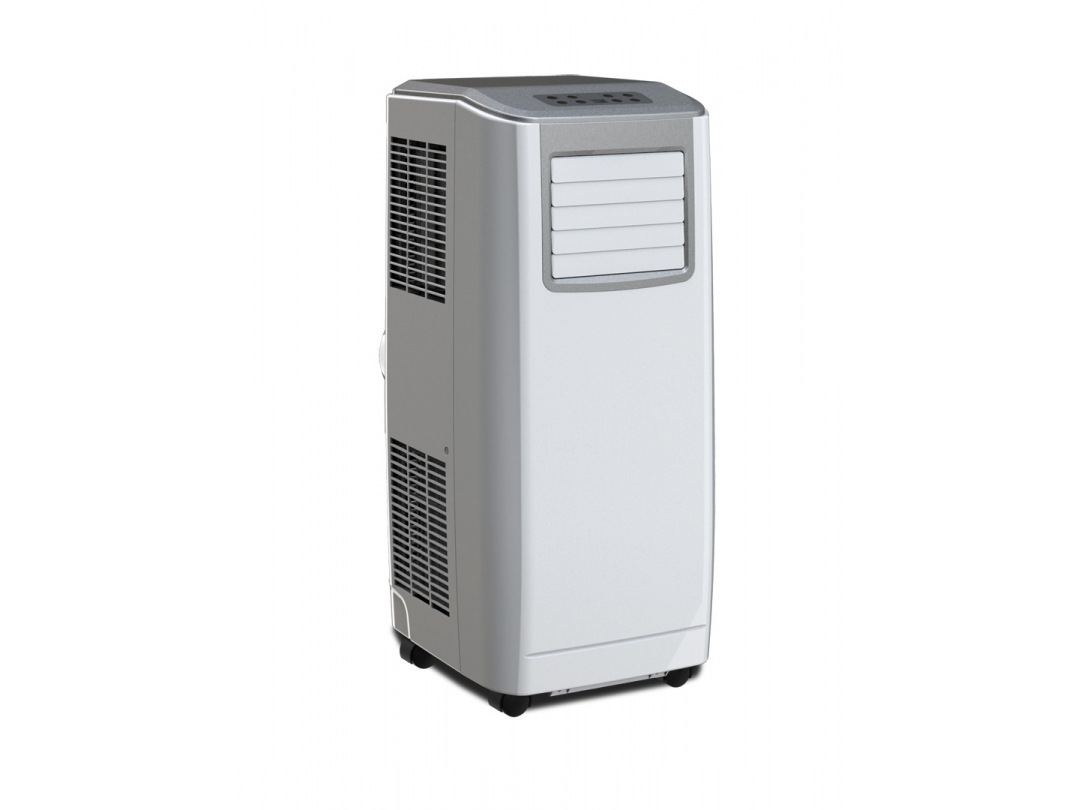

FGA-9075

FGA-7075 / FGA-8075 / FGA-9075/FGA-1075

  • 4 functions in 1: Air Conditioner/Fan/Dehumidifier/Auto(heating & wifi function is optional)
  • Thermostatic Cut Off, Auto Shut Off, Overheating Protection, Auto Diagnosis
  • Energy saving sleep function and Breeze Mode
  • Anti-bacteria water tray and water tank inside , no germ & bacteria will be built up inside.
  • Adjustable air vent
  • Easy to manoeuvre on casters
  • Air cooling system, no need for frequent drainage except the extreme wet weather (R.H. over 90%)
  • Above data are measured in Calorimeter Room based on EN14511 regulation, power supply: 220~240V, 50Hz.
  • All the products are patented, specification & product design are subject to change without notice



Model no.   FGA-7075 FGA-8075 FGA-9075 FGA-1075
Power supply   220-240V~, 50Hz 220-240V~, 50Hz 220-240V~, 50Hz 220-240V~, 50Hz
Cooling capacity BTU/hr 7000 8000 9000 10000
  KW 2.1 2.3 2.6 2.93
Power/Ampere consumption W/A 810 / 3.6 885 / 4.0 1000 / 4.5  1130 / 5.0
Dehumidify capacity L/day 15 17 22 27
Air volume(max.) M³/h 370 360 360 360
Compressor   Rotary Rotary Rotary Rotary
Refrigerant   R290 R290 R290 R290
Fan speed   2 2 2 2
Timer hour 1~24 1~24 1~24 1~24
Working temperature oC 18~32 18~32 18~32 18~32
Exhaust pipe mm Ø 150 x 1500 Ø 150 x 1500 Ø 150 x 1500 Ø 150 x 1500
N.W/G.W kg 22.5 / 24.5 23.5 / 25.8 24.6 / 27.1 25.8/27.8
Product size (WxDxH) mm 317 x 402 x 770 317 x 402 x 770 317 x 402 x 770 317 x 402 x 770
Carton size (WxDxH) mm 380 x 555 x 830 380 x 555 x 830 380 x 555 x 830 380 x 555 x 830
Container q’ty   120 sets/20’GP 252 sets/40’GP 378 sets/40’HQ
