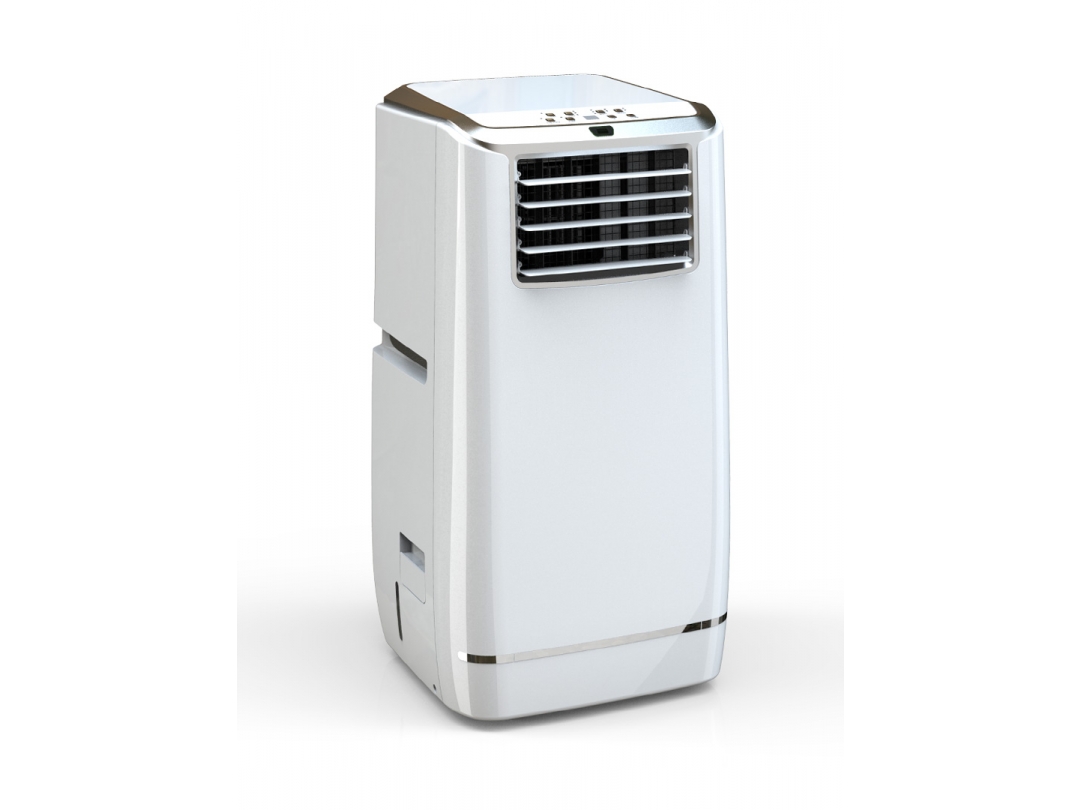

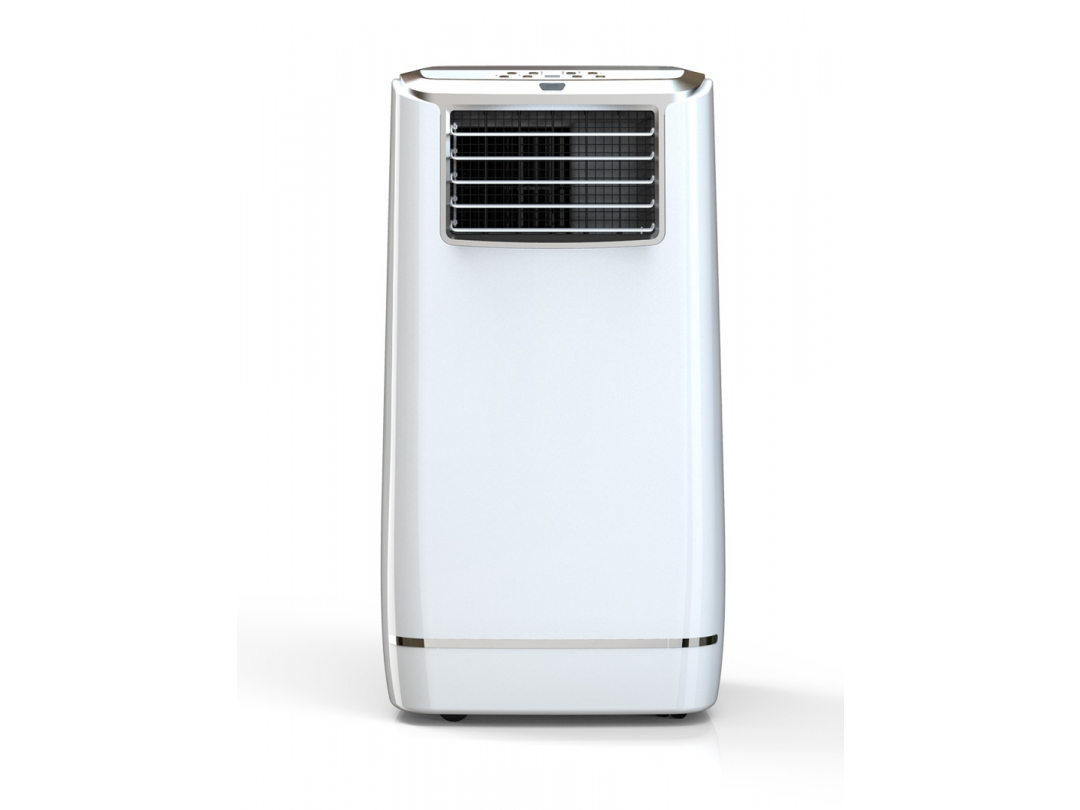

FGA-1272

FGA-1172A+ / FGA-1272 / FGA-1372

  • 4 functions in 1 : Air Conditioner/Fan/Dehumidifier/Auto(heating &Wi-Fi function is optional)
  • Thermostatic Cut Off, Auto Shut Off, Overheating Protection, Auto Diagnosis
  • Super Efficiency-Built-in energy saving function
  • Anti-bacteria water tray and water tank inside , no germ & bacteria will be built up inside.
  • Adjustable air vent
  • Easy to manoeuvre on casters
  • Power indicator light
  • Air cooling system, no need for frequent drainage except the very wet weather (R.H. over 90%)
  • Above data are measured in Calorimeter Room based on EN14511 regulation, power supply: 220~240V, 50Hz.
  • All the products are patented, specification & product design are subject to change without notice

Model no.   FGA-1172A+ FGA-1272 FGA-1372
Power supply   220-240V~, 50Hz 220-240V~, 50Hz 220-240V~, 50Hz
Cooling capacity BTU/hr 11000 12000 13000
  KW 3.2 3.5 3.8
Power/Ampere consumption W/A 1030 / 4.6 1300 / 5.8 1380 / 6.2
Dehumidify capacity L/day 30 31 41
Air volume(max.) M³/h 490 510 430
Compressor   Rotary Rotary Rotary
Refrigerant   R290 R290 R290
Fan speed   3 3 3
Timer hour 1~24 1~24 1~24
Working temperature oC 18~32 18~32 18~32
Exhaust pipe mm Ø 150 x 1500 Ø 150 x 1500 Ø 150 x 1500
N.W/G.W kg 30.5 / 33.2 30.2 / 32.8 31.1 / 33.8
Product size (WxDxH) mm 415 x 418 x 790 415 x 418 x 790 415 x 418 x 790
Carton size (WxDxH) mm 480 x 600 x 845 480 x 600 x 845 480 x 600 x 845
Container q’ty   84 sets/20’GP 182 sets/40’GP 273 sets/40’HQ
